P4.81 Stage Led Screens Board , High Brightness Led Display Rental For Concert
1) Connector: Aerial grade brands ensure the stable transmission of power and signal.
2) PCB Board: adopt 4-layer design.
3) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.
Product specification
| SMD P4.81 |
| Lamp size | 2121 |
| Resolution/mm | 4.81 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 64510/m² |
| Module resolution | 64x64 |

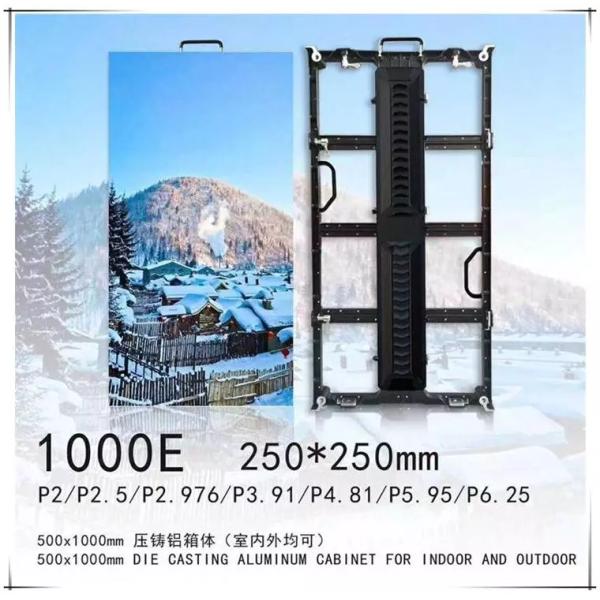

| Module size/mm | 250x250 |
| View distance | ≥2m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check,
temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Product Overviews
| Items | Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |

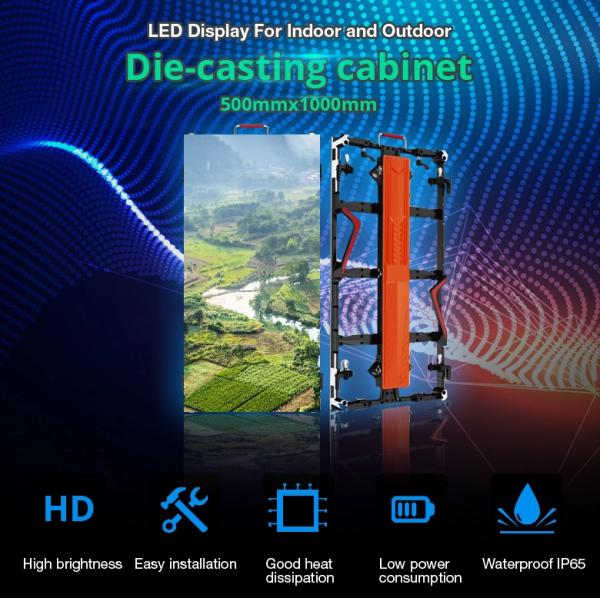

| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Features

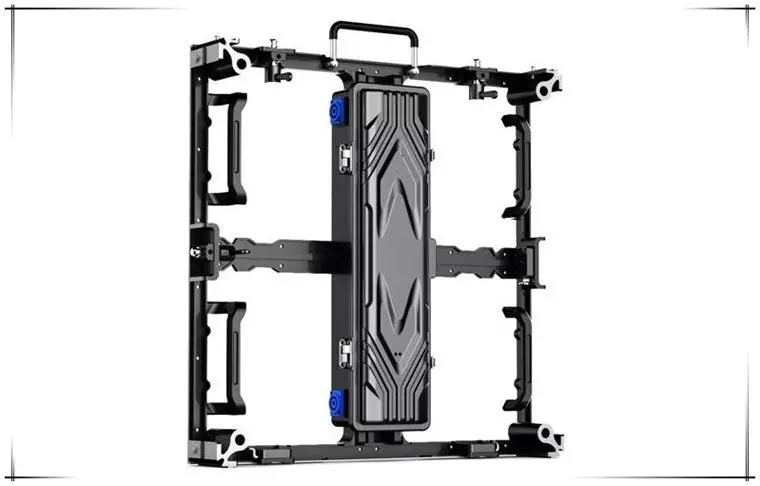

1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
3. High refresh rate and high gray scale --- to ensure color consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Trade Terms
| Payment terms: | 35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
| Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
| Shipping: | LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: | -Lifetime with professional engineer support for free.
-Within 1 year, supply spare parts for free if the machine has quality problem |
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure
